ITrackProjector Class Reference

#include <ITrackProjector.h>

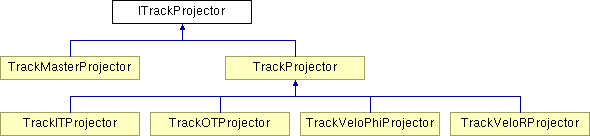

Inheritance diagram for ITrackProjector:

List of all members.

Public Member Functions
virtual StatusCode	project (const State &state, Measurement &meas)=0
virtual const HepVector &	projectionMatrix () const =0
	Retrieve the projection matrix H of the (last) projection.
virtual double	chi2 () const =0
	Retrieve the chi squared of the (last) projection.
virtual double	residual () const =0
	Retrieve the residual of the (last) projection.
virtual double	errResidual () const =0
	Retrieve the error on the residual of the (last) projection.
Static Public Member Functions
static const InterfaceID &	interfaceID ()

---

Detailed Description

Interface for tracking projector tools

Author:

Jose Hernando

Eduardo Rodrigues

Date:

2005-03-15

Definition at line 23 of file ITrackProjector.h.

---

Member Function Documentation

virtual double ITrackProjector::chi2 (   )  const [pure virtual]

Retrieve the chi squared of the (last) projection. Implemented in TrackMasterProjector, and TrackProjector.

virtual double ITrackProjector::errResidual (   )  const [pure virtual]

Retrieve the error on the residual of the (last) projection. Implemented in TrackMasterProjector, and TrackProjector.

static const InterfaceID& ITrackProjector::interfaceID (   )  [inline, static]

Definition at line 26 of file ITrackProjector.h. References IID_ITrackProjector(). { return IID_ITrackProjector; }

virtual StatusCode ITrackProjector::project (  const State &  state, Measurement &  meas )  [pure virtual]

Project a state onto a measurement. It returns the chi squared of the projection Implemented in TrackITProjector, TrackMasterProjector, TrackOTProjector, TrackProjector, TrackVeloPhiProjector, and TrackVeloRProjector. Referenced by TrackMasterProjector::project().

virtual const HepVector& ITrackProjector::projectionMatrix (   )  const [pure virtual]

Retrieve the projection matrix H of the (last) projection. Implemented in TrackMasterProjector, and TrackProjector. Referenced by TrackMasterProjector::projectionMatrix().

virtual double ITrackProjector::residual (   )  const [pure virtual]

Retrieve the residual of the (last) projection. Implemented in TrackMasterProjector, and TrackProjector.

---

The documentation for this class was generated from the following file:

• ITrackProjector.h

---
